Janome MB-4 Four-Needle Embroidery Machine

List Price: ~~$8,999.00~~
Your Price: $5,999.00
Or $166.64 Per Month
You Save $3000 [33%]

Product Info

Images

Reviews

Janome MB-4 Four Needle Embroidery Machine

The Janome MB-4 is the "World's First" home-use four-needle embroidery machine! Everything you love about Janome embroidery with four times the capacity! And so easy! Just set up your embroidery and move on to other projects while the MB-4 gets it done.

The MB-4 works with most embroidery formats, including those used by industry professionals. It can use six industry-standard Tajima hoops, as well as the four available Janome hoops to further expand your creative opportunities.

Features

Backlit LCD screen.
Auto thread cutter.
Built in features.

Built-in designs: 100.
Fonts: 3.
Monogramming: 2 & 3 letter.
Expanded built-in memory.

Stitch-out time indicator.
Stitch counter.
Upper thread and presser foot sensors.
Manual thread tension control.
Embroidery speed up to 650spm.
Embroidery area tracing.
Standard hoops.

Large 5.5 inches x 7.9 inches (140mm x 200mm).
Standard 5 inches x 4.3 inches (126mm x 110mm).

Editing.

Change colors to favorite thread: Janome, Robison-Anton, Madeira, Mettler.
Drag & Drop editing for easy placement.
Embroidery design resize 90% - 110% by 1%.
Rotate in 1 and 45 degree increments.
Flip vertically and horizontally.
Zoom in and out.

MY SET screen controls for contrast, in/cm, designation, and other customization.
Multi-language selection.
USB memory key compatible.
ATA PC card port.
Compatible with Janome software.
Ball bearing precision.

Key Features

Remote Computer Screen. Remote Computer Screen (RCS).
The Remote Computer Screen (RCS) gives you total set-up and editing control with up to 65,536 colors. One RCS can power many machines, saving the cost of additional controllers.

LED Light.
The LED Light offers precise lighting for outstanding results.

Automatic Thread Cutter.
The MB-4 automatically cuts jump threads - even between letters - saving you time and hassle.

Dedicated Bobbin Winding Motor.
This feature - not found on professional machines - winds new bobbins even while the machine is stitching a design.

On Board Control. On Board Control,
The MB-4 includes an on-board sub-control device. You can use it without the controller! The MB-4 also includes 3 MB of memory which can store up to 1,500,000 stitches or up to 100 designs.

Link Directly To A PC. Link Directly to PC.
The on-board USB slave port connects directly to your PC with Digitizer MB software, sold separately.

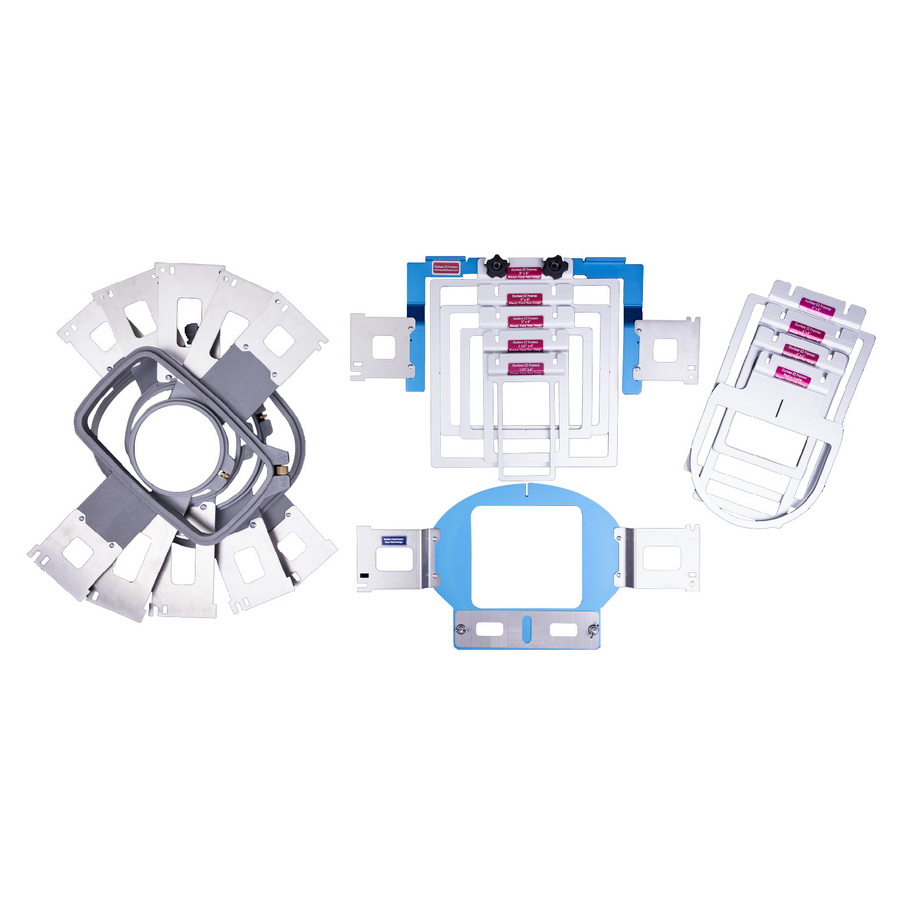

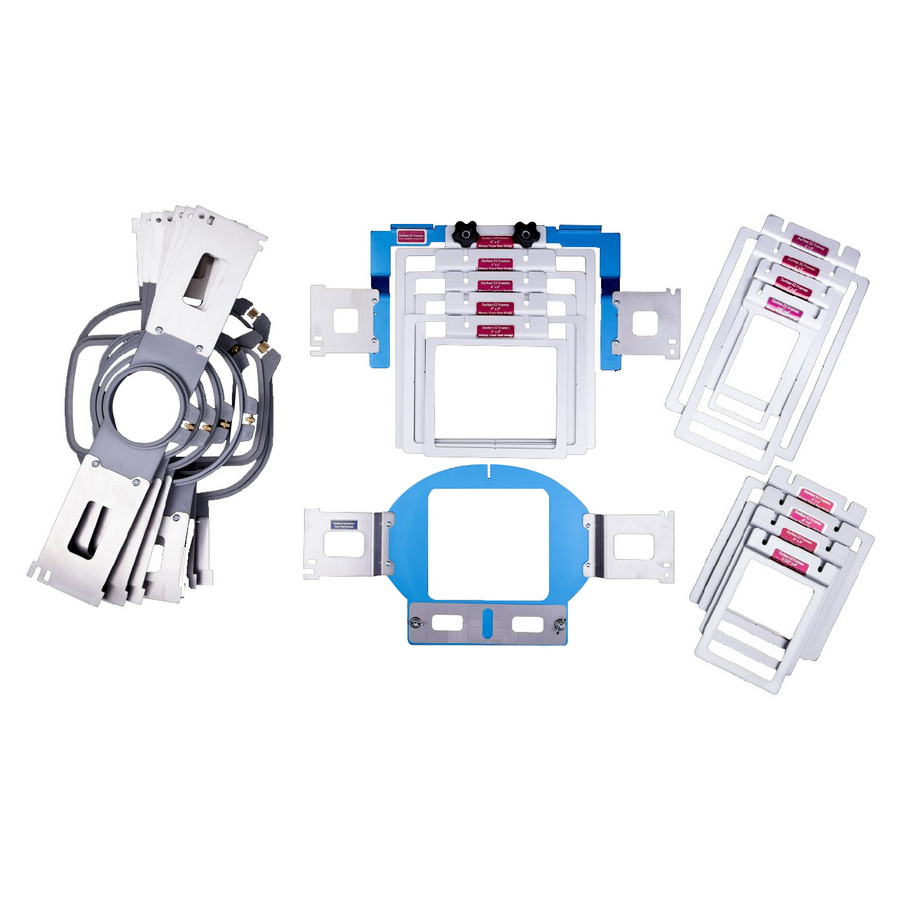

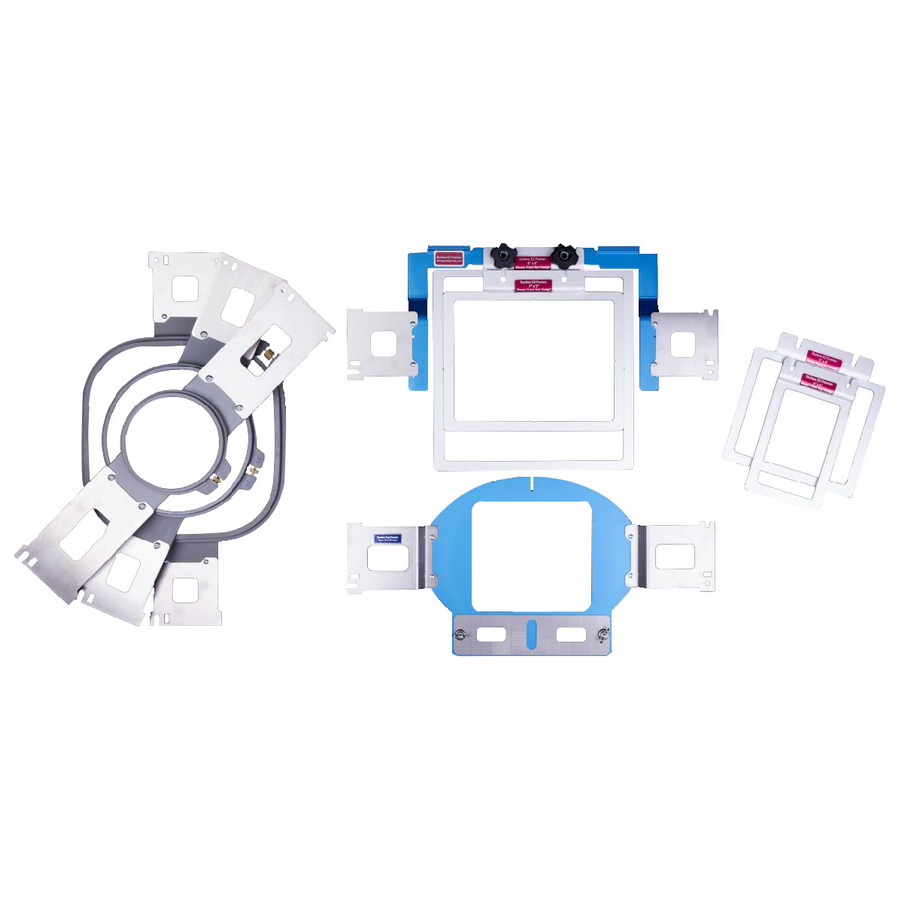

Embroidery Hoops. Embroidery Hoops
Three included MB-4 hoops snap in and out with ease. They provide the embroidery areas most often used in the industry. The MB-4 is also fully compatible with industry-standard Tajima hoops.

Standard Accessories

Bobbins.
Needle (DB x K5Q1-NY).
Needle Threader.
Felt Ring (large).
Felt Ring (small).
Hoop M1 (240 x 200).
Hoop M2 (126 x 110).
Hoop M3 (50 x 50).
Hoop Supporter.
Spool Caps.
Spool Net.
Spool Pin.
Spool Rest.
Spool Stand.
Lint Brush.

Thread Guide Bar.
Thread Guide Pole.
Tweezers.
Seam Ripper.
Scissors.
Offset Screwdriver.
Screwdriver (large).
Screwdriver (small).
Setscrew.
Accessory Box.
Oiler.
Power Supply Cable.
Instruction Book.
Instructional CD-ROM.

Specifications

Single head 4-needle embroidery machine.
Upper thread breakage sensor.
Built-in auto thread cutter (needle & bobbin threads).
Thread cutter for bobbin winding.
Needles.

Number of needles: 4.
Type of needles: DBxK5Q1NY #11.

Speed.

Maximum speed: 800 spm.
Low range speed: Up to 400 spm.
Bobbin winding speed: 2,000 rpm.

DB rotary hook (full rotary).
Machine control: By Remote Computer Screen (option) or Sub-Control Panel.
Sub-Control Panel: LCD with backlight (H12 x W63mm).
Lay-in thread tension (manual adjustment).
Independent bobbin winding (with independent start button).
Upper thread holder spring on the face plate.
Direct PC-Link.
Embroidery format compatibility: jef+/jef (Janome) & DSL (Tajima).

Control keys.

Mode key (*2).
OK key.
4 Jog-keys.
Forward / Reverse stitch keys.
Manual thread cutting key.
Start/Stop key (on Remote Computer Screen and Sub-Control Panel).

Resumption setting / My Set (with Remote Computer Screen).
3 Hoops.
White LED x 2 sewing lamp.
Spool stand (incl. 1 for bobbin thread & 4 additional spool).
Cylinder shape of bed.
Skeleton (clam shell) body construction.
DC motor.
Machine size: W365 x H640/(440*) x D520 mm.
Bed width: W299 x H130 mm.
Machine weight: 20.5 kg.
Packing size: W450 x H620 x D660 mm (*1).
Gross weight (incl. packing): 29 kgs (*1).

FREE Resizing and Conversion Software

TrueSizer is a universal file conversion tool offering full compatibility between industrial and domestic embroidery file formats, as well as full design scalability.
