Single Needle, Lock Stitch Machine for straight stitching and quilting is also perfect for tailoring, dressmaking and home decor items. As a bonus, we include 20 free bobbins and a box of 100 Organ sewing needles.
STANDARD FEATURES:
Longer arm and sewing bed for easy handling of quilts
High sewing speeds up to 1,500 spm
Basic sewing functions operated by foot pedal
Automatic Thread Trimmer - The machine is equipped with an automatic thread trimming device that simultaneously cuts the needle and bobbin threads at the sewing end by lightly pressing the push-button. It uses the thread trimming mechanism that is similar to the industrial sewing machine type.
Foot Pedal Switch for Thread Trimming - As with an industrial sewing machine, the thread trimmer can be activated with the foot pedal switch. It greatly increases sewing efficiency.
Automatic Needle Threader - The push-lever automatic needle threader easily threads the needle without eyestrain and allows you to start sewing quickly.
Even Feed Foot - With its reliable feed, the even feed foot ensures the machine's ability to produce beautiful seems when sewing difficult-to-feed fabrics such as georgette and velvet, as well as heavy weight materials such as leather.
Predetermined Stop Position of the Needle - To move the needle up or down as desired, simply press the needle up/down button. When the button is pressed continuously, the machine sews stitch by stitch at low speed.
Two Types of Quilting Foot - Two types of quilting feet are supplied as standard accessories with the machine. A 1/5" Quilting Foot is used for basic quilting and the 1/4" Quilting Foot for precision sewing with 1/4 inch stitch width.
Feed dog can be raised and lowered by a simple switch. When quilting, the drop feed allows you to sew curved stitches with ease.
Knee lifter lever allows you to lift or lower the presser foot without using your hands.
Presser foot can be raised up to 12mm
Easy Bobbin Replacement - A new bobbin case latch and an enlarged bobbin case area make it easier to remove and replace the bobbin.
Automatic bobbin winder
Adjustable Presser Foot Pressure - Presser foot pressure can be adjusted according to the fabric being sewn by turning a regulator located on the top of the machine.
Heavy-Weight Materials are sewn with Ease - The speed control mechanism, operated by microcomputer, allows the machine to sew material at low speeds. This provides for accurate feed and perfect stitching when sewing heavy weight fabrics, quilting and multiple layers of materials.
Includes the Following Accessories: Walking Foot, Darning/Embroidery Foot (Also called "Free Motion" Foot), 1/4" Seam Foot, Rolled Hem Foot, Zipper Foot, Foot Control, Power Cord, Instruction Manual
Comes with extension table
Juki Limited Warranty: 2 years electrical, 5 years mechanical
Made in Japan
Specifications:
Sewing Speed: Max. 1,500 r.p.m
Stitch Length: Max. 6mm
Lift of the Presser Foot:
- By Lever, Max. 9mm
- By Knee Lifter, Max. 12mm
Needle: HAx1 (130/705H) #7-#18 (HLx5#9-#16)
Dimensions: 452 (W) x 350 (H) x 219 (D) (mm)
Weight (Machine only): 11.5kg
Rated Voltage / Power Consumption: 120V / 1.4A, 100W
Power Consumption of the Lamp: 12V, 3W
Auxiliary Table (Dimensions): 590 x 277 (mm)
Hook: Horizontal-axis Full-rotary Hook
Included Accessories:
Small screwdriver
T-screwdriver
Lint brush
Bobbins
Spool cap
Oiler
Needle pack
Straight stitch foot
Hemmer foot
Zipper foot
Even-feed foot
1/4" darning foot
1/5" darning foot
Compensating foot
Power cord
Foot control w/ thread trimmer
Instruction manual
Knee lever
Extension table
Grace Speed Control
Control your sewing machine with the touch of a button. The Grace Speed Control replaces your foot control.
Features:
Speed dial that allows you to set your machine to desired stitch speed.
On/Off Button
Pulse Button (machine runs until you release it, or touch and release for a single stitch)
Thread Cutter Button --activates your machine's thread cutter.
Velcro Straps for easy attachment to your frame.
Compact Ergonomic Design.
The Speed Control Box comes with a 3.5mm Male Mono Plug connector and a 5.5mm Female Power Plug.
Smooth, seamless tracking without metal-on-metal. The key to the entire system is how the sewing machine tracks. With the GMQ-Pro, your machine rests on two specially designed, sturdy plates that track perfectly with ball-bearing rollers for an incredibly smooth ride. There is no wobbling. These plates allow for up to 16 inches of forward/reverse travel in the work area. The only limit to your reach is your own machine.
Easy Grip Handles Free-Motion quilt from the needle side of the machine....
....Or quilt from the back of the machine to follow patterns.
A Smooth, Cushioned RideWith precision-bearing steel wheels, wobble-free platforms and seamless plastic tracks that install perfectly straight without seams or bumps, Grace provides the smoothest, quietest track system you can find.
The tracks for the bottom plate are engineered specifically for the GMQ-Pro out of ABS plastic. The tracks are in-set on the tabletops in pre-cut grooves, so they automatically align and are guaranteed to stay straight, so you never have to worry about them being misaligned! With the track being one single length, there is no worry of seams or bumps.
Pivoting Rails Inspect your stitches and get easy access to change your bobbin with the easy-lift rail mount system. The bottom two rails lift up, out of the way, while preserving the tension in your work.
Sturdy Design The GMQ-Pro's sturdy design includes table tops ideal for pantographs (pointer included). Aluminum track supports add to the frame's robust construction and professional appearance.
Includes Fabri-Fast System This is a no-baste, four-rail system. The custom-designed rails come with the new Fabri-Fast system for fast and easy fabric installation. Simply push your fabric and tubing into the Fabri-Fast slot with the Fabri-fast tool included. Fabric goes in and stays in, straight and clean.
Added Stability Ensure a smooth, level traveling surface with these easy-to-adjust leveling feet.
Easier Side Tension System The GMQ-Pro comes with four side-tension clamps (two for each side). Simply apply the clamp, then pull and secure the bungee cord in the side slot. Fast and easy!
Folds up for easy storage Folding legs make the frame easier to store up against the wall when not in use.
Fourth Rail Included A fourth rail below the work area serves a a batting storage rail, keeping your batting up and off the floor.
Includes FREE QuiltCAD design software!
QuiltCAD is an easy-to-use stitch-design software, allowing you to create/layout/print full quilt-top and pantograph stitch designs. It is actually 2 applications in one: QuiltCAD, the quilt layout and pattern placement tool, and PatternCAD, the continuous line pattern design editor.
QuiltCAD Features:
Quilt Layout - Create quilt layouts that range in size from 2 inches by 2 inches to 14 feet by 14 feet.
Block Layout - Dynamically select the number of block rows an columns.
Powerful Block Selection Tools - Targets your pattern placement and shaping.
Auto-pattern Sizing - Patterns will automatically size themselves to the blocks' dimensions.
Pattern Shaping - Stretch, rotate, scoot, and flip your patterns
Design Preview - Full-screen view of quilt design.
Print-to-Scale - Yes, print your own patterns, quilt layouts, and pantographs to scale. Pages are numbered and calibrated for precise alignment.
Automatic Border Creation - Orients and connects patterns into continuous borders.
PatternCAD Features:
Quick N EZ Pattern Creation Tools - Automatically creates literally thousands of fascinating patterns.
Design Templates - Guide you in making designs that seamlessly mesh with QuiltCAD's advanced blocking features
File Exporting - Saves pattern designs in formats readily adaptable to existing computer controlled quilting machines.
Full-fledged Standard Editing Features - Stretch, Flip, Rotate, Copy, Paste, Move, etc.
Dual Drawing Layer - Break complex designs into simple parts, store and merge them on the layers
Background Selection - Grid, Clear or Images for Tracing!
Powerful Mirroring Functions - Design beautiful patterns through the repetition and symmetry of mirrors.

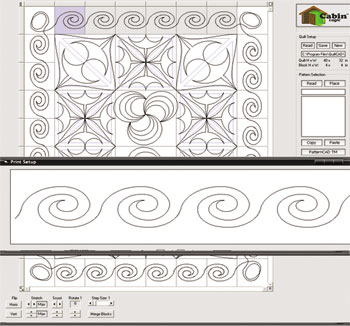

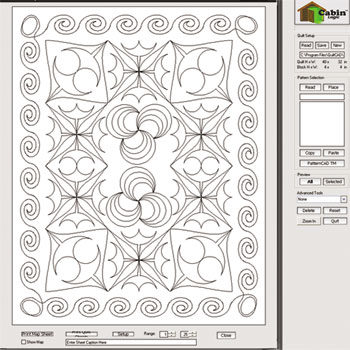

Create/layout full quilt-top stitch designs.
The power of QuiltCAD lies in its simplicity and in its functionality. Both QuiltCAD and PatternCAD have been designed from the ground up, putting you, the quilt designer, first and foremost.
These two fully-integrated applications enable you to go from pattern creation to finished quilt stitching in a matter of minutes. You will be astonished at the ease by which you can create beautiful continuous line patterns and quilt stitch designs.

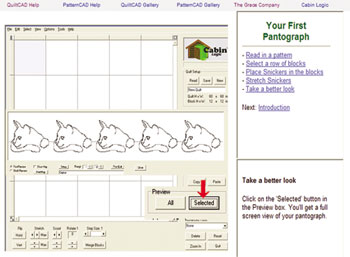

Quick Layout - Simply choose a pattern to create a full pantograph or quilt layout
Quilt Layout - create an entire quilt layout by selecting a single pattern
Printer Friendly - QuiltCAD includes over 100 patterns, but it also has the ability to allow you to design and print personalized patterns.

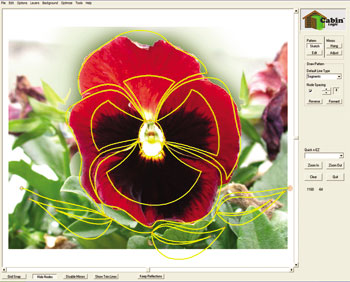

Create Patterns - QuiltCAD also allows you to develop patterns based on imported photos and images--making your designs come to life on your quilt!
User Friendly - QuiltCAD has easy to follow tutorials, and you are able to save your designs for a later time.
