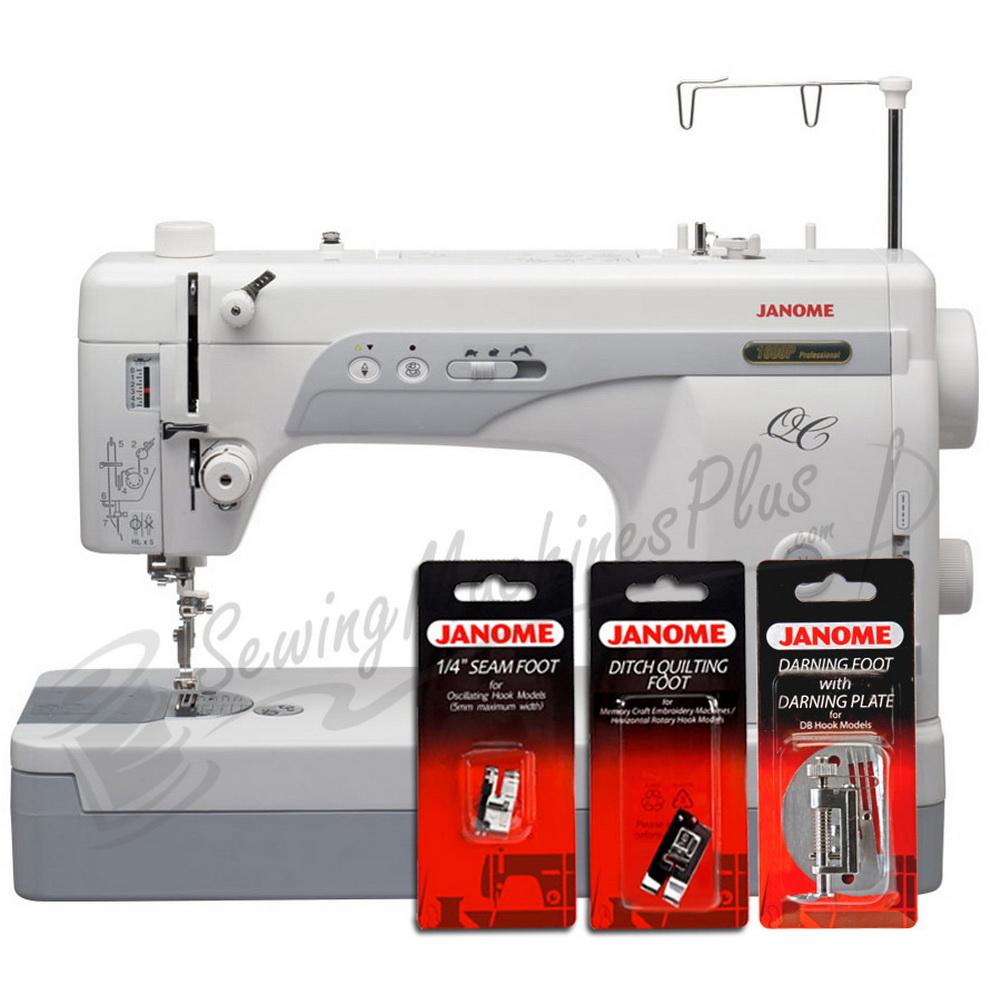

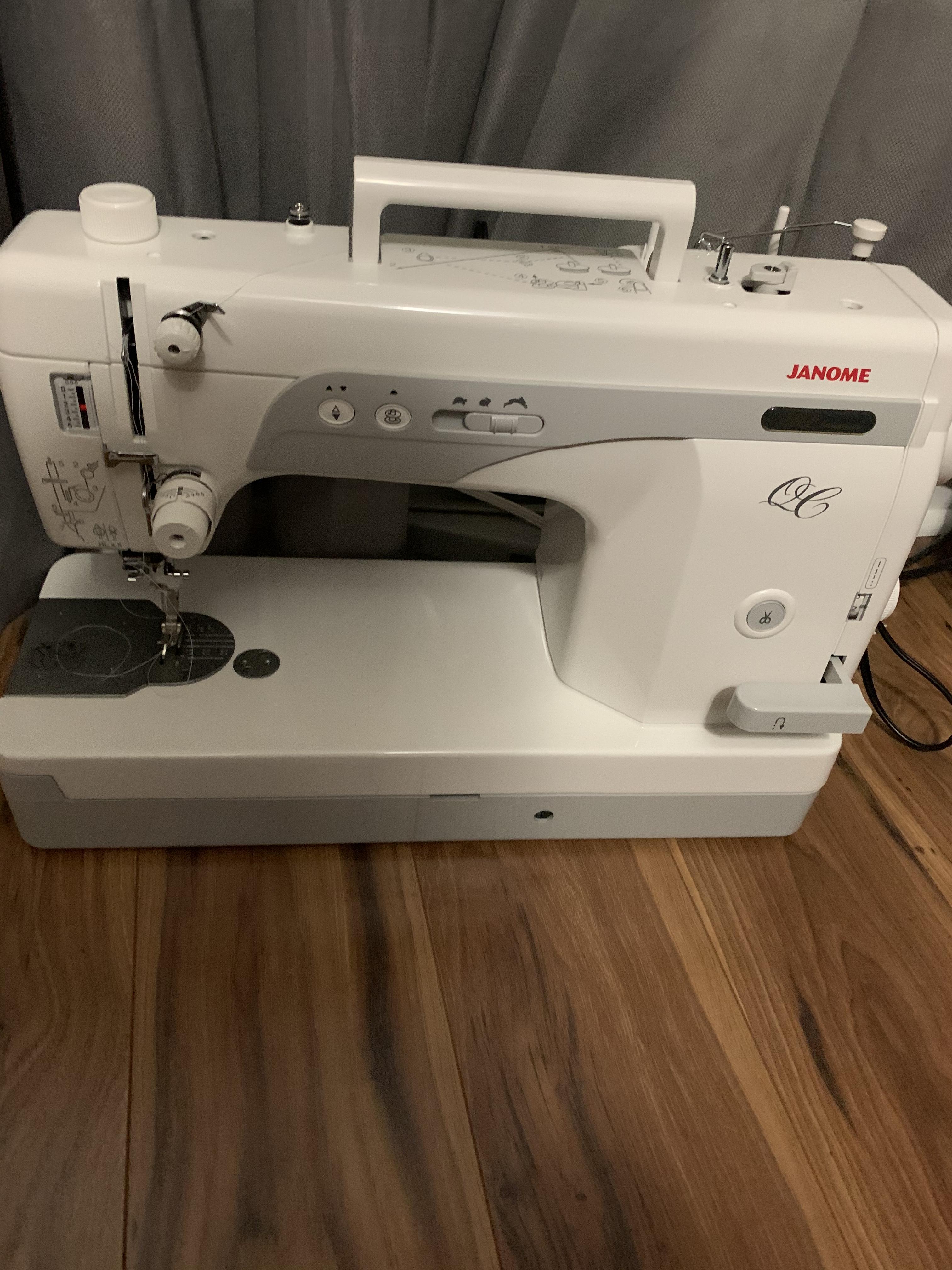

Fast speeds and smart design make the 1600P-QC the perfect machine for sewing and quilting! You'll find everything you need to complete projects quickly and easily: Speeds of 1,600 stitches per minute make this the fastest machine on the market; nearly 9" x 6" to the right of the needle gives an extra wide work area; the side-loading bobbin allows for easy access, even from a quilt frame; the automatic thread cutter cuts top and bobbin thread at the push of a button; and the ergonomic knee lift offers a full range of adjustment so you can find the size that fits you.
Key Features
Presser Foot Sensor
This unique sensor system will not allow you to start sewing with the presser foot in UP position.
Memorized UP/DOWN Needle Setting
The exclusive Up/Down needle button lets you control the needle's position when you stop sewing. Set it for UP when you want to move your fabric; DOWN for corners and pivots.
Independent Bobbin Winder
The independent bobbin winder works separately from the main motor so you can fill your next bobbin while you sew.
Variable Speed Control
Slide setting from about 70 stitches per minute to 1600 stitches per minute.
Automatic Thread Cutter
Cut the top and bobbin threads at the push of a button. ALSO can be used from quilt frame handle via cable hookup.
Easy Reverse
Ergonomic Knee Lift
Quilt for hours in comfort with our ergonomic knee lift. With a full range of adjustment from left to right, you can find the position that fits you best.
Super Pressure
The 1600P-QC provides up to 11 lbs of pressure from the presser foot. That's the greatest pressure available on the market today for a home straight stitch machine. Power through even the thickest layers of fabric without shifting.
Sew Smooth
Vibration-dampening rubber, precision parts, and a hollow needle bar guarantee a smooth and quiet sewing experience.
Side-Loading, Industrial Rotary Hook Bobbin
The side loading bobbin allows for easy access, even while the 1600P-QC is on a quilt frame.
Smooth Feeding Thread and Diagram
The 1600P-QC has a Pre-Tension thread regulator that takes the kinks out of your thread before it goes through the tension mechanism.
Features
High speed sewing: 800-1,600 spm
Simultaneous bobbin winding
Knee lift
Pressure indicator window
Auto thread cutter
Variable speed control
Side-loading, industrial rotary hook
Memorized needle up/down
Extra large 8.85" x 5.5" work area
Dual lights
Industrial-type thread take-up lever
No oil holes in bed
Sealed bearings on shafts
Up to 11 lbs. of presser foot pressure
Industrial pretension threading
Thread diagram printed on machine front
Bobbin winding diagram printed on machine top
Liquid response foot control - no stalls
Synchronized thread tension lever
Variable stitch length up to 6mm
Metal attachment setting plate
Sleek design of home machine
Quiet operation with no external motor
Specifications
Vertical full rotary (industrial) hook
Type of needle-HL x 5, size 9 - 16
Flat bed type
Painted aluminum body construction type
Folding type (short) Carrying handle
Machine size-W498 x H323 x D178 mm
Arm space-225 x 140 mm
Maximum speed-1,600 spm (lowest: 50-70 spm)
Stretch length control by dial
Maximum stitch length-6 mm
Manual Thread tension control
Speed control slider
Programmable Needle up/down
Foot pressure adjustment by dial with indicator
Extra-high presser foot lift-Lever: 6 mm (Extra lift: 12.7 mm)
Knee lifter: 8 mm
Darning plate included for free motion quilting
Independent Bobbin winder motor
Hinge type Presser foot (with shank)
Automatic thread cutter
Thread cutter (underneath face plate)
Remote thread cutter operation (via socket)
Built-in needle threader
Thread take up lever-Round hole for thread path
Vertical type (Fixed) Spool pin
Lamp Krypton lamps (x 2)
Knee lifter (adjustable type)
Electronic foot controller
Additional sensor to prevent machine from starting with presser foot in up position
